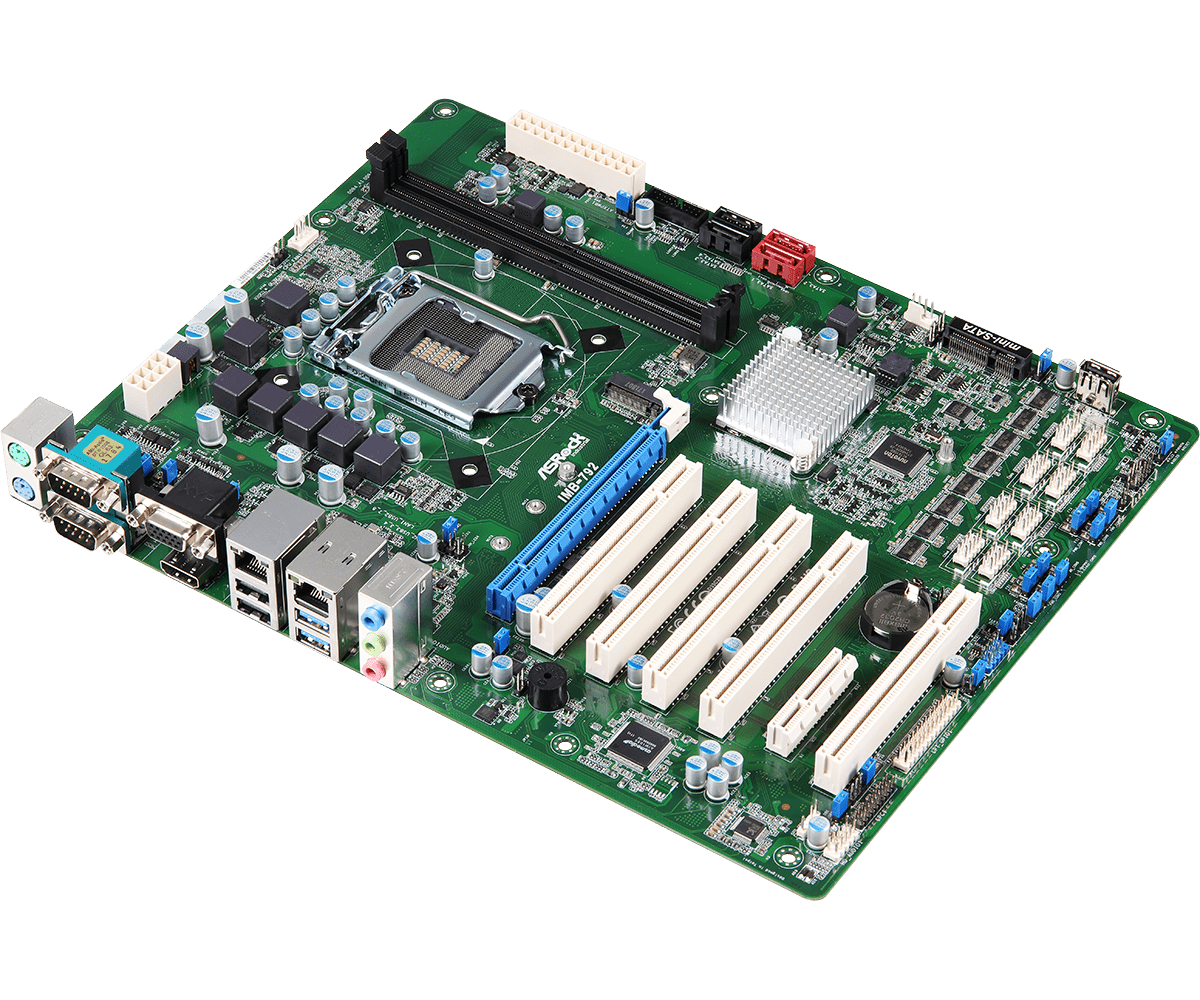

Processor System
| CPU |
Intel 7th / 6th Gen (Kabylake-S/Skylake-S) Core Processors |
| Chipset |
Intel H110 |
| Socket |
LGA1151 |
| BIOS |
AMI SPI 128 Mbit |
Form Factor
| Dimensions |
ATX (12-in x 9.6-in, 30.5 cm x 24.4 cm) |
Memory
| Technology |
Dual Channel DDR4 2133 MHz |
| Capacity |
32GB |
| Socket |
2 x Long-DIMM |
Graphics
| Controller |
Intel Gen9 Graphics DX 11 / 12, OGL4.3/4.4 |
| VGA |
Supports max resolution up to 1920 x 1200 |
| MultiDisplay |
Dual Display |
| HDMI |
Max resolution up to 4096 x 2160@30Hz |
Expansion Slot
| PCIe |
1 x PCIe x16, 1 x PCIe x4 |
| PCI |
5 |
Audio
| Interface |
Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in,Line-in |
Ethernet
| Controller/ Speed |
Intel I219V with 10/100/1000 Mbps,
Intel I210 with 10/100/1000 Mbps |
| Connector |
2 x RJ-45 |
Rear I/O
| VGA |
1 |
| Ethernet |
2 |
| USB |
2 x USB3.0, 2 x USB2.0 |
| Audio |
3 (Mic-in, Line-in, Line-out) |
| COM |
2 x COM (RS-232/422/485) |
| PS2 |
2 (1 x keyboard, 1 x mouse) |
| HDMI |
1 |
Internal Connector
| USB |
2 x USB3.0, 3 x USB2.0 |
| 8 x COM(RS-232) |
| Parallel |
1 (shared with GPIO) |
| GPIO |
8 x GPI, 8 x GPO (shared with LPT header) |
| TPM |
1 x Header |
| Speaker Header |
1 |
Storage
| mSATA |
1 x Full size with shared SATA3 and USB2.0 |
| SATA |
4 x SATA3, one is shared with M.2 Key M, one is shared with mSATA |
| M.2 |
1 x M.2 (Key M, 2242/2260/2280) with shared SATA3 for SSD |
Watchdog Timer
| Output |
From Super I/O to drag RESETCON# |
| Interval |
256 segments, 0,1,2.255sec |
Power Requirements
| Input PWR |
ATX PWR (24+8-pin) |
| Power On |
AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp |
0degC ~ 60degC |
| Storage Temp |
-40deg C - 85deg C |
| Operating Humidity |
5% ~ 90% |
| Storage Humidity |
5% ~ 90% |
Accessories
| Gift Package |
1 x I/O Shield (13G020506000AK)
2 x SATA Data Cable (14G00010107DAK) |
| Bulk Package |
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020506000AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
